VERSA™
VX-1

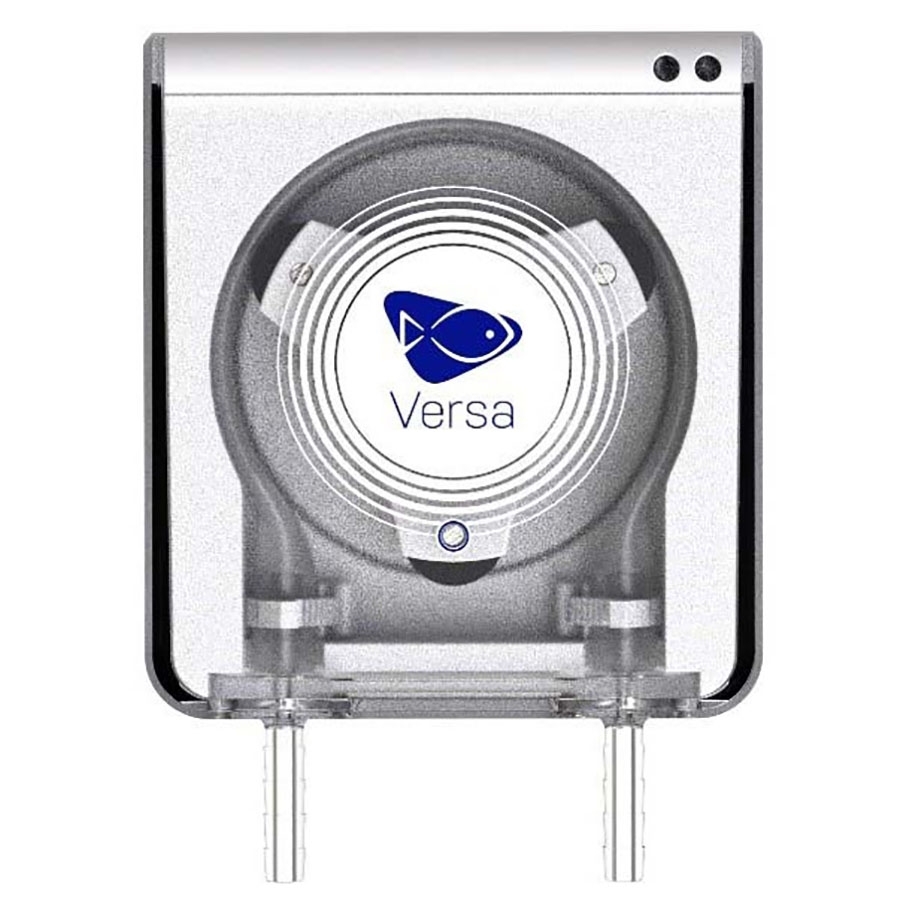

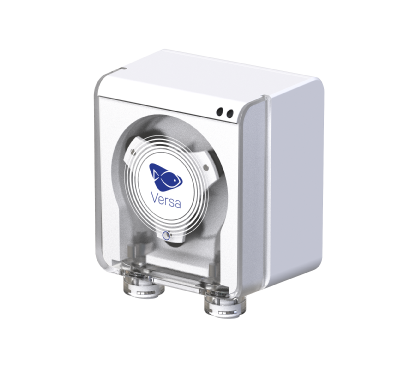

Single Versa Peristaltic Pump
![](https://ecotechmarine.com/wp-content/uploads/2020/01/VX1_02.png)
Dimensions | |
---|---|
Length | 3.15in.(80mm) |
Width | 2.34in.(59.4mm) |
Height | 4.21in.(106.9mm) |
Power Specifications | |
---|---|
Power Consumption | 12W |
Universal Input Range | 100-240VAC, 50/60Hz |
Peak Inrush Current | 1.3A |
Dosing Volume | |
---|---|
MIN | 0.5ul a minute |
MAX | 300ml a minute |
Connectors | |
---|---|
Included | Female PTC & Barbed Adapter |
VERSA™
VXF-1
Four Pack of VX-1 pumps w/ Base Station
![](https://ecotechmarine.com/wp-content/uploads/2020/01/VXF_Angle.png)
Dimensions | |
---|---|
Length | 12.80in.(325.12mm) |
Width | 3.21in.(81.5mm) |
Height | 4.21in.(107mm) |
Power Specifications | |
---|---|
Power Consumption | 60W |
Universal Input Range | 110-240VAC, 50/60Hz |
Peak Inrush Current | 2.0A |
Dosing Volume(per pump) | |
---|---|
MIN | 0.5ul a minute |
MAX | 300ml a minute |
Connectors | |
---|---|
Included | Female PTC & Barbed Adapter |
VERSA™
VXB-1
Base Station Accessory
![](https://ecotechmarine.com/wp-content/uploads/2020/01/VXB_Angle.png)
Dimensions | |
---|---|
Length | 12.80in.(325.12mm) |
Width | 0.87in.(22mm) |
Height | 3.52in.(89.4mm) |
Power Specifications | |
---|---|
Power Consumption | 60W |
Universal Input Range | 110-240VAC, 50/60Hz |
Peak Inrush Current | 2.0A |
![](https://ecotechmarine.com/wp-content/uploads/2016/07/Mobius_Radar_02-uai-1032x1022.png)
![](https://ecotechmarine.com/wp-content/uploads/2016/07/mobius_logo_options-2.png)
An Ever Expanding Ecosystem
You’ve invested in your ecosystem with the smartest and most capable EcoTech® equipment. Now unlock the true potential of this system with nothing more than an app on your smart device.
CONTROL
Mobius™
is EcoTech’s new equipment control app. Free for download from your favorite iOS or Android app store (available at the time of Versa™ public launch), Mobius™ turns your smart device into the control center for your EcoTech® equipment. Simple is an understatement. In less than five minutes, you can be up and running:
- 1. Download the Mobius App.
- 2. Create a Profile.
- 3. Power on your Versa.
- 4. Create a tank name.
- 5. Add the Versa and create an operating program.
![](https://ecotechmarine.com/wp-content/uploads/2020/01/Mobius_Versa-uai-516x1070.png)
![](https://ecotechmarine.com/wp-content/uploads/2020/01/Screen-Shot-2020-01-02-at-10.29.17-AM-uai-720x584.png)
PROGRAMMING
Including safeguards, catch-up, and a myriad of other features: A defining characteristic of EcoTech® equipment is the versatility and power of control offered to the aquarium hobbyist. A defining characteristic of Mobius™ is packaging all this capability in a way that makes programming and control intuitive, quick, and painless.
![](https://ecotechmarine.com/wp-content/uploads/2020/01/Versa_Explode.jpg)
HEAVY-DUTY
Commercial-grade construction using durable ABS plastics and precision gearing make the Versa™ is built to last. Designed to handle long term continuous use applications, time between servicing is greatly extended with the use of laboratory-grade silicone tubing.
FLEXIBLE INSTALLATION
Available for individual use or as a four-pack including a Base Station. Up to four individual pumps can dock to each Base Station. The Base Station features a consolidated power supply and tactile indexing buttons.
![](https://ecotechmarine.com/wp-content/uploads/2019/11/VXB_Front-uai-1032x316.jpg)
![](https://ecotechmarine.com/wp-content/uploads/2020/01/Planetary-Gear-Drive.png)
PLANETARY GEAR
The Versa’s drive configuration is optimized for precision and longevity — two essential characteristics for a precise yet robust market-leading peristaltic pump.
MODES
![](https://ecotechmarine.com/wp-content/uploads/2020/01/Auto-Mode.png)
Auto Mode
Auto mode schedules dosing specific to what additive or solution is being dosed. This mode utilizes standard dosing practices and known water parameter changes in a reef tank based on light cycle and biological activity. The Versa™ does not determine dosing volume, that requires testing and tuning. It will however, schedule dosing based on the salt or additive selected.
![](https://ecotechmarine.com/wp-content/uploads/2020/01/Continuous-Mode.png)
Continuous Mode
Continuous mode sets a dosing rate (volume/min) that runs when the pump is powered. Continuous mode is an always-operating dosing mode and needs to be controlled by external means (controller, timer, float switch, etc.).
![](https://ecotechmarine.com/wp-content/uploads/2020/01/Manual-Mode.png)
Manual Mode
Manual Mode allows the user to create a program specifying dosing volumes and or durations. The Versas variable operational capability allows volume dosing to be carried out a specified rate or over a specified time period. Up to 30 discrete dosing events can be created per pump in a 24hr period. The Catch-Up feature allows the Versa™ to correct a dosing difference if the pump is shut down or is interrupted during its daily program. Safe-guards help protects against some potential dosing issues.
VERSA™ ACCESSORIES
![](https://ecotechmarine.com/wp-content/uploads/2020/01/Poly_Tubing.jpg)
Polyurethane Tubing
Available in 25ft sections of four different colors.
![](https://ecotechmarine.com/wp-content/uploads/2020/01/Replacement-Connectors.jpg)
Connectors
Push to connect connectors and elbows for use with polyurethane tubing.
![](https://ecotechmarine.com/wp-content/uploads/2020/01/Elbow_Connectors_Four_Pack.jpg)
Elbow Connectors
Four pack of replacement Elbow Connectors for use with Polyurethane tubing.
